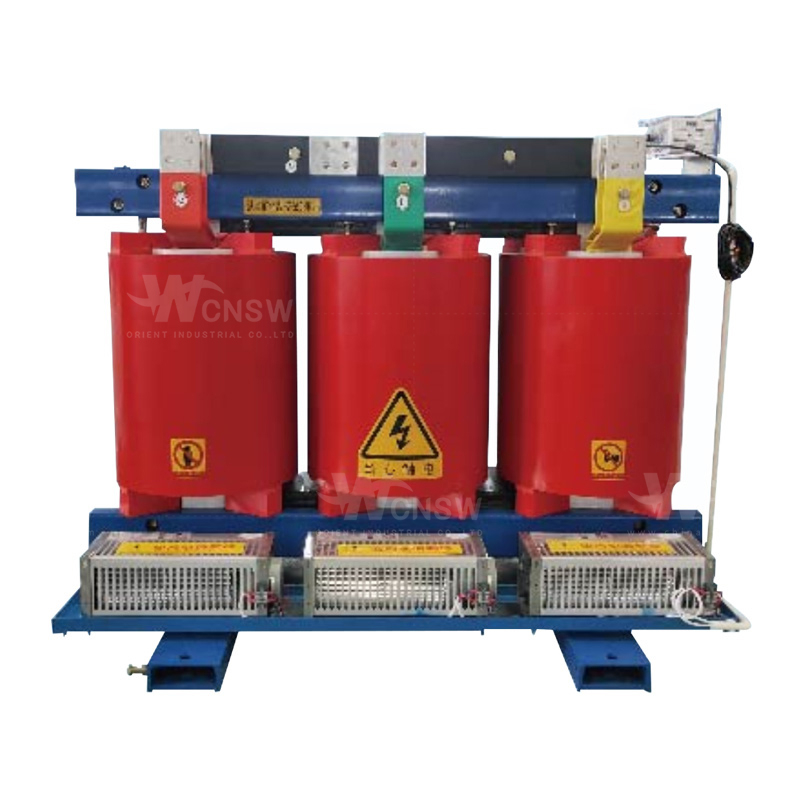

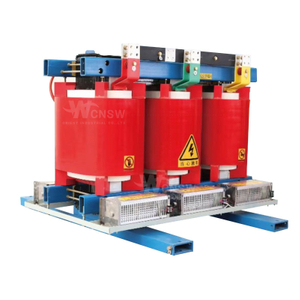

SC(B)13 Dry Type Transformer
CNSW
SC(B)13 Dry Type Transformer
| Quantity: | |
|---|---|
Low loss: product no-load loss than SCB1 1 type products to reduce more than 20% energy saving effect is excellent,economic operation maintenance-free. Low noise: the noise level of the product is more than10-15dB lower than the current professional standard JB/T10088-2016 6-220KV class transformer sound Level. Low partial discharge: the resin mixture adopts the most advanced foreign mixing method and vacuum film degassing technology, which makes the mixture mix evenly and completely excludes the air bubbles in the mixture. The product has only very low partial! discharge.High and low voltage coils are cast under vacuum and pressure.so that the resin insulation has both full encapsulation and layer turn-to-turn Impregnation.
High mechanical strength:the resin with filler makes the expansion coefficient difference within the casting body small, the curing shrinkage is small, the internal stress is small, the hardness of the cured material is high, in the internal and external surfaces of the epoxy resin encapsulation layer of the high-voltage and low-voltage
coils, the placement of prefabricated reinforcing materials, with a dense structure like reinforced concrete, so the mechanical strength is greater than that of pure epoxy resin, and it can withstand the action of sudden short-circuit electric force without damage.
Low loss: product no-load loss than SCB1 1 type products to reduce more than 20% energy saving effect is excellent,economic operation maintenance-free. Low noise: the noise level of the product is more than10-15dB lower than the current professional standard JB/T10088-2016 6-220KV class transformer sound Level. Low partial discharge: the resin mixture adopts the most advanced foreign mixing method and vacuum film degassing technology, which makes the mixture mix evenly and completely excludes the air bubbles in the mixture. The product has only very low partial! discharge.High and low voltage coils are cast under vacuum and pressure.so that the resin insulation has both full encapsulation and layer turn-to-turn Impregnation.
High mechanical strength:the resin with filler makes the expansion coefficient difference within the casting body small, the curing shrinkage is small, the internal stress is small, the hardness of the cured material is high, in the internal and external surfaces of the epoxy resin encapsulation layer of the high-voltage and low-voltage
coils, the placement of prefabricated reinforcing materials, with a dense structure like reinforced concrete, so the mechanical strength is greater than that of pure epoxy resin, and it can withstand the action of sudden short-circuit electric force without damage.
