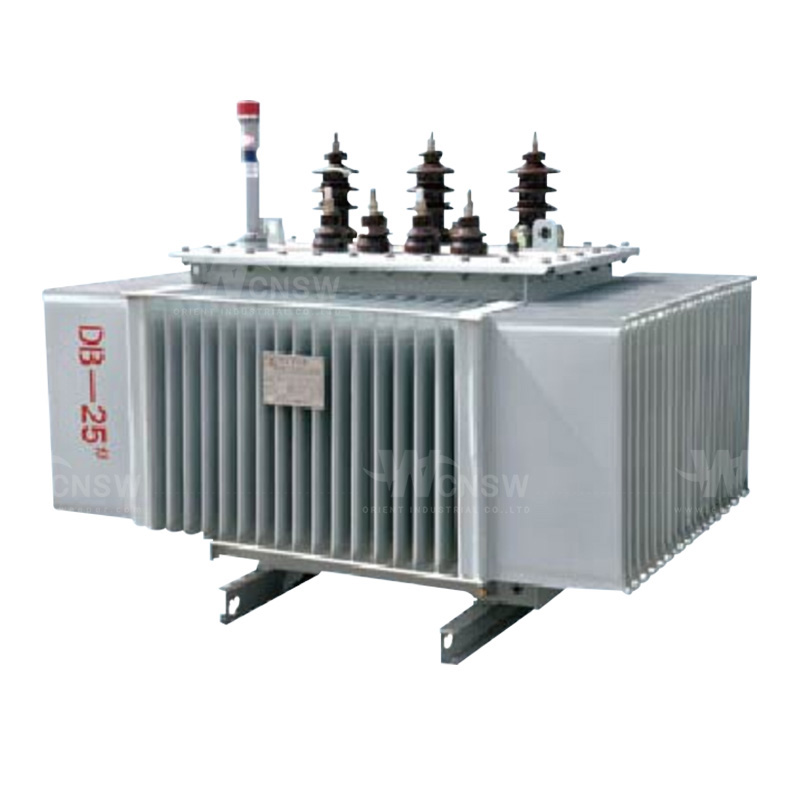

SH15-M Sealed Amorphous Alloy Power Transformer
| Quantity: | |
|---|---|

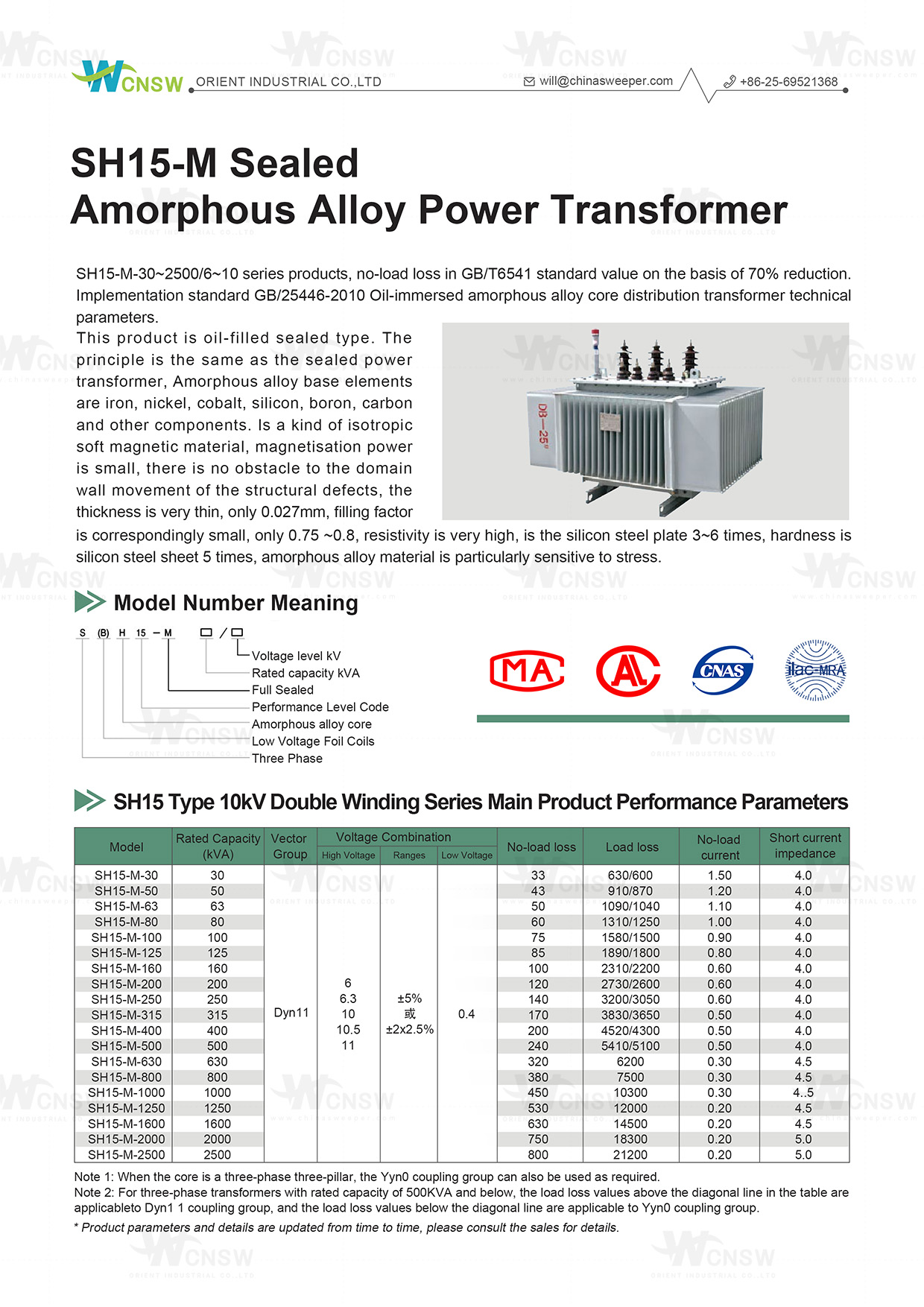

SH15-M-30~2500/6-10 series products, no-load loss in GB/T6541 standard value on the basis of 70% reduction Implementation standard GB/25446-2010 0il-immersed amorphous alloy core distribution transformer technical parameters.
This product is oil-filled sealed type. The principle is the same as the sealed power transformer.Amorphous alloy base elements are iron,nickel,cobalt,silicon, boron, carbon and other components.Is a kind of isotropic soft magnetic material.magnetization power is small,there is no obstacle to the domain wall movement of the structural defects. The thickness is very thin, only 0.027mm, filling factor is correspondingly small, only 0.75 ~0.8, resistivity is very high, is the silicon steel plate 3-6 times, hardness is silicon steel sheet 5 times, amorphous alloy material is particularly sensitive to stress.
